$1,825.00 – $1,925.00

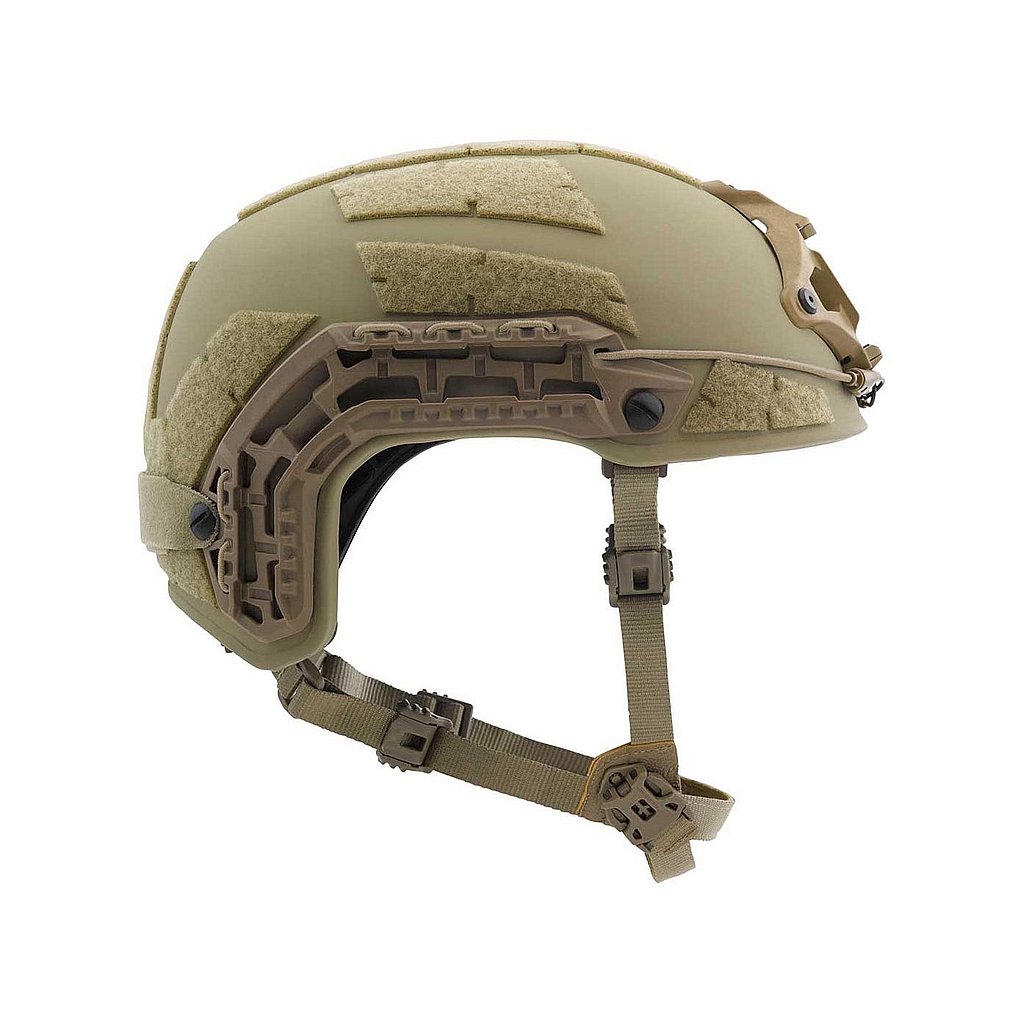

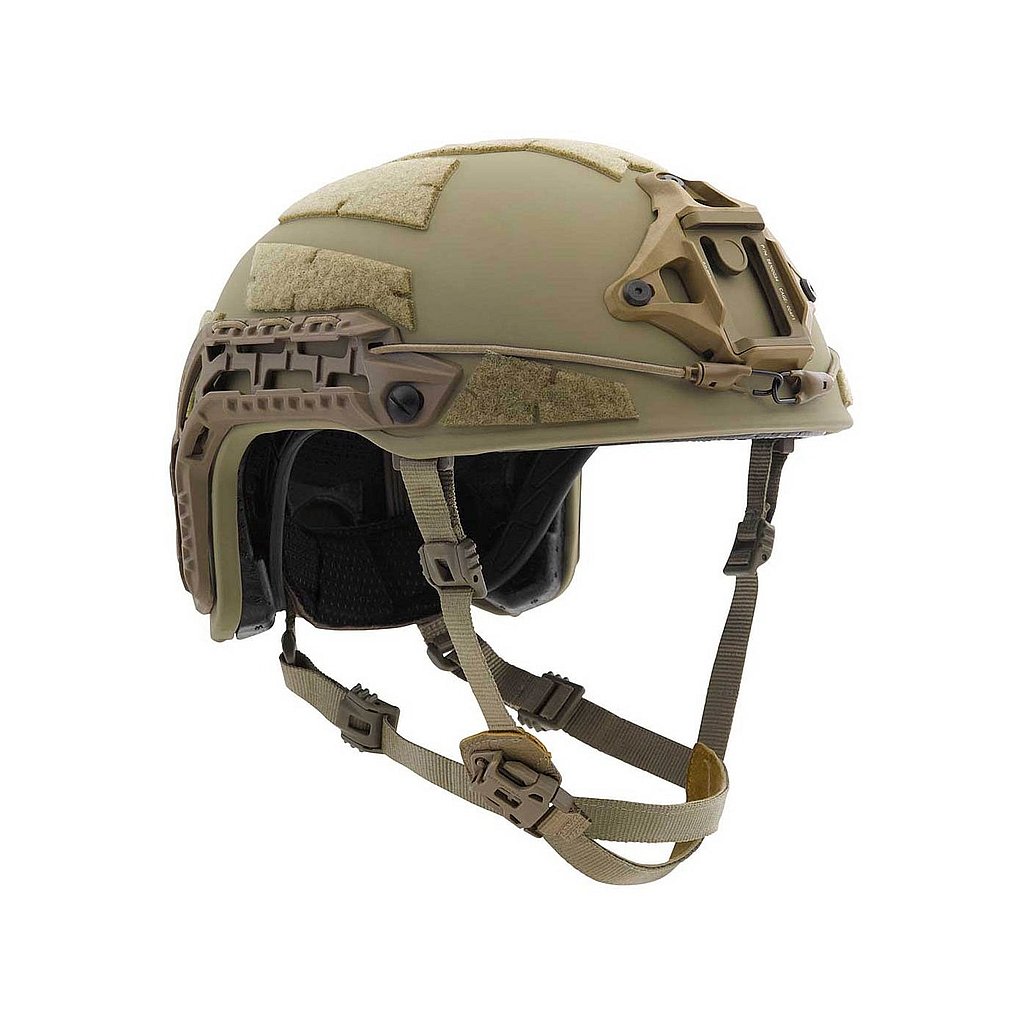

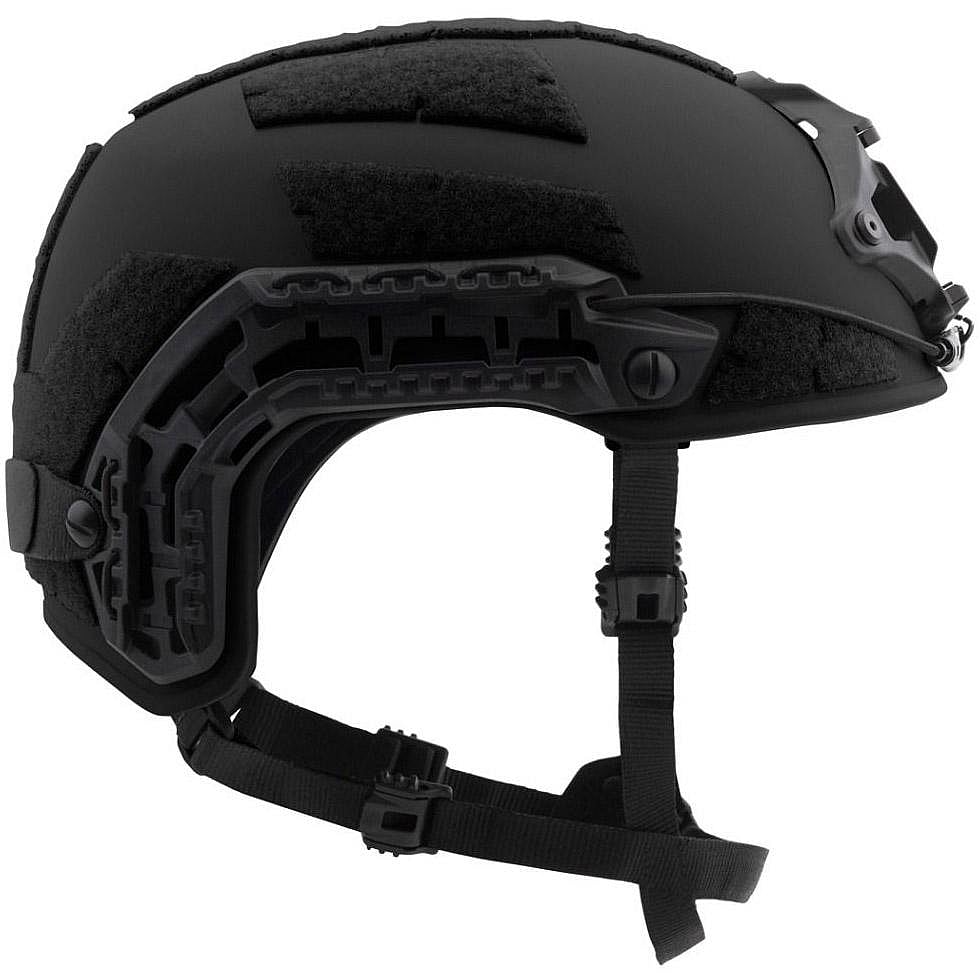

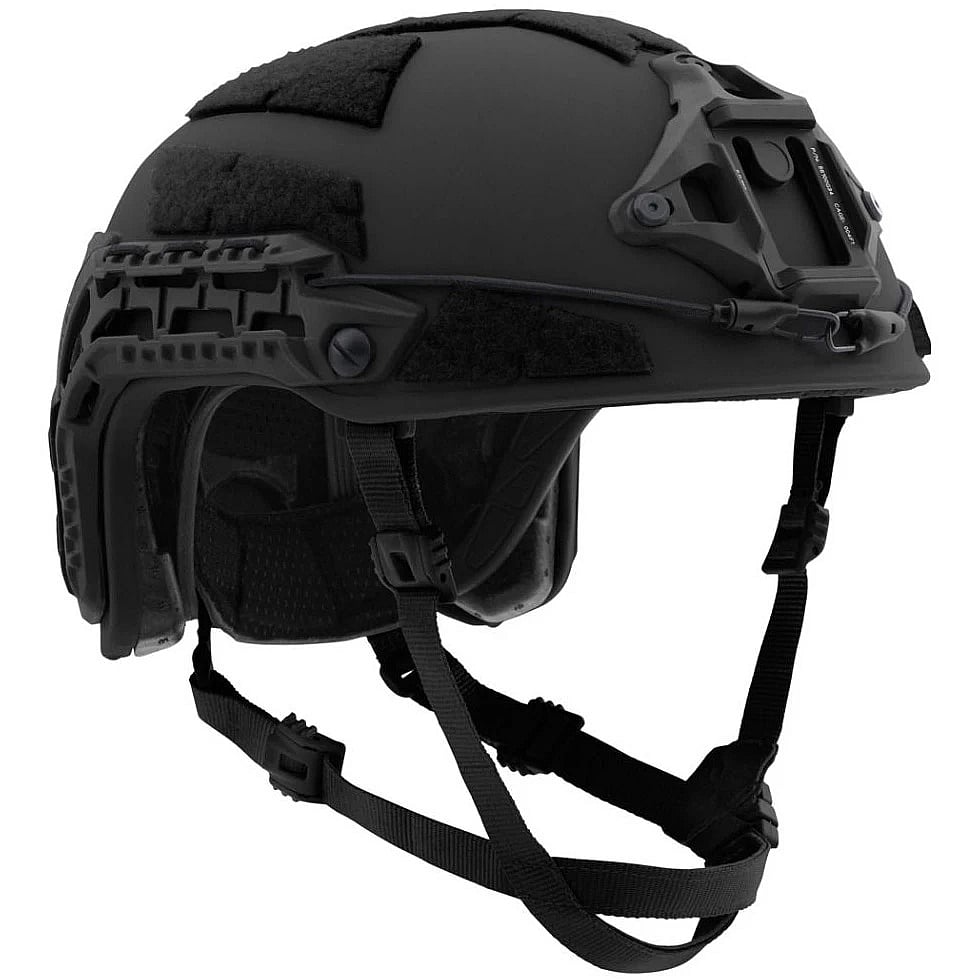

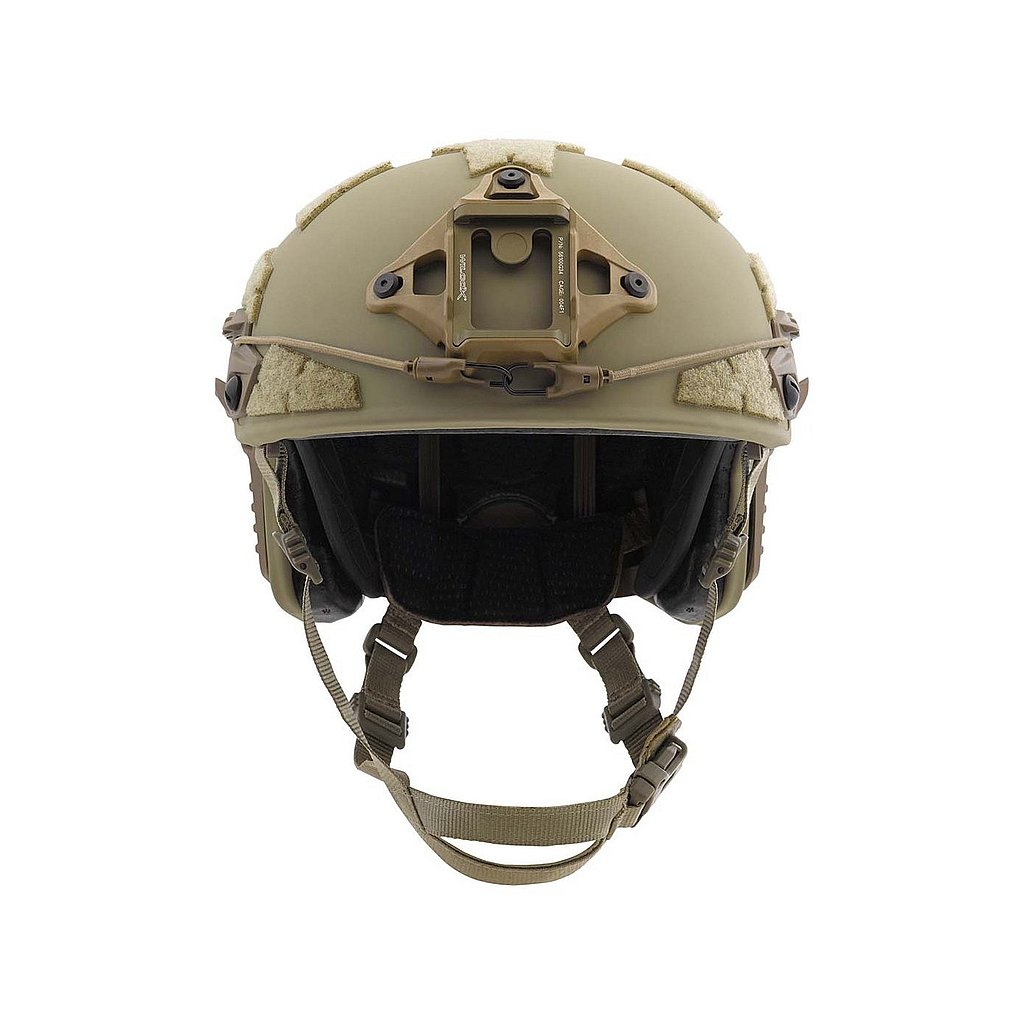

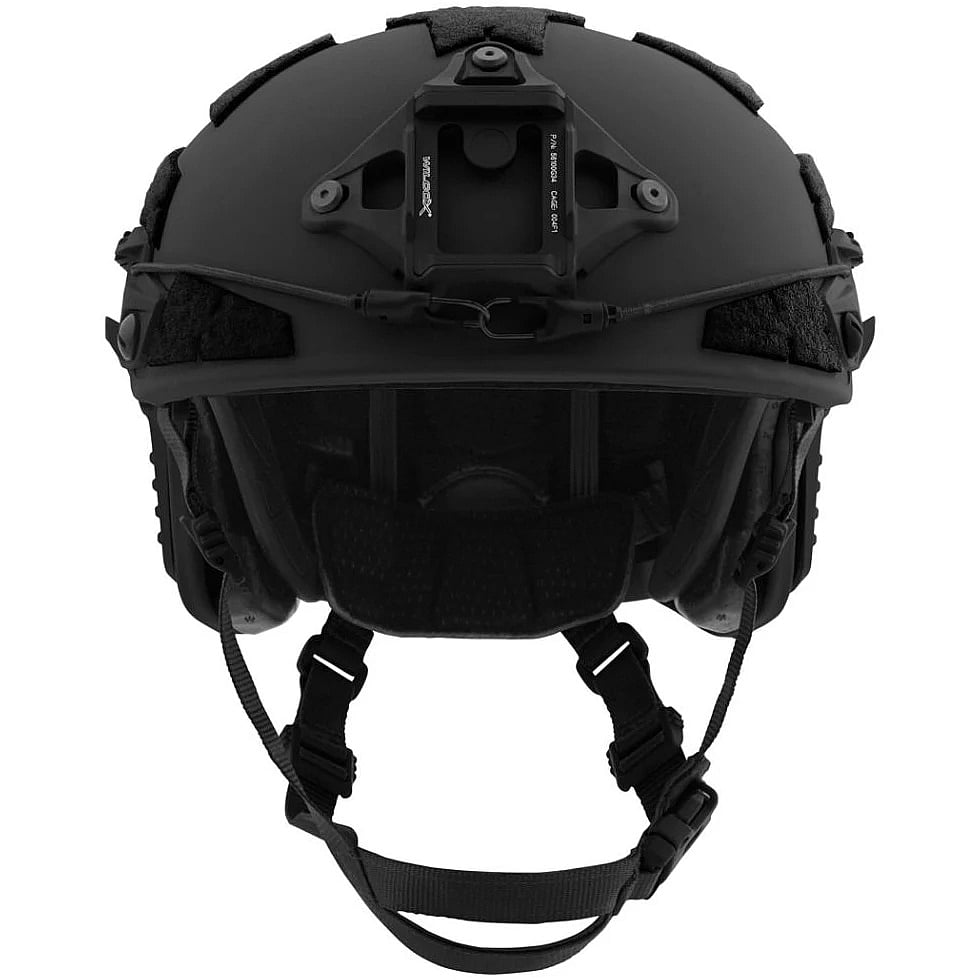

The Caiman Ballistic Helmet System is a streamlined, lightweight next-generation Special Operations helmet solution. A series of modular accessories – including a Wilcox® Shroud, a lean rail system, and the innovative, multi-size APEX Liner System – enhance this helmet suite, ensuring users are equipped with the lightest, most comfortable, and highest performance head protection possible. Working directly with SOF operators, Galvion built the Caiman Helmet System from the ground up, crafting a helmet solution designed for peak performance in high-intensity, volatile conditions—optimized for riverine, maritime, high-altitude, free-fall, and ground maneuvers. The result: an unconventional helmet system for unconventional missions.
Shell Only
SMALL: 1.47 lbs (0.67 kg)
MEDIUM: 1.53 lbs (0.69 kg)
LARGE: 1.61 lbs (0.73 kg)
X-LARGE: 1.77 lbs (0.80 kg)
2X-LARGE: 1.92 lbs (0.87 kg)
Complete System
SMALL: 2.33 lbs (1.05 kg)
MEDIUM: 2.38 lbs (1.08 kg)
LARGE: 2.49 lbs (1.13 kg)
X-LARGE: 2.71 lbs (1.23 kg)
2X-LARGE: 2.89 lbs (1.31 kg)
1x Caiman Ballistic Shell
Wilcox® L4 Series Shroud
Rail System
APEX Liner System
Hardware Kit
Helmet System exceeds industry standard impact requirements
Five Helmet Sizes: 39% of users benefit from better-fitting, comfortable, and
lighter helmet
Weight: Advanced materials and manufacturing processes achieve lightweight helmet solution
Best-in-class APEX Liner System is infinitely customizable, providing the ultimate comfort and impact protection
Entire helmet system is designed to seamlessly integrate with other military and communications equipment
Suite designed for a range of uses including ground and maritime environments
Integrated and Scaleable System: Up or down armor with rails, NVG shroud, and
optional full face protection accessories (various visors and mandible guards)
Ground-up design: minimizes weight & bulk while offering maximum protection and performance
Full system weight (Medium – including Ballistic Shell, Wilcox L4 Shroud, Rails, APEX Liner System): < 2.48 lb (40 oz)
Made in Vermont USA by Galvion
BALLISTIC PERFORMANCE
2gr FSP V50: > 1242 m/s (4075 ft/s)
4gr FSP V50: > 1052 m/s (3450 ft/s)
16gr FSP V50: > 739 m/s (2425 ft/s)
64gr FSP V50: > 518 m/s (1700 ft/s)
17gr FSP V50: > 670 m/s (2200 ft/s)
9mm RTP: Remington 124 grain FMJ, 9x19mm projectile at 1195 + 50ft/s
9mm BFD: Remington 124 grain FMJ, 9x19mm projectile at 1195 + 50ft/s <29 mm (All locations)
Stops NIJ level IIIA Threats: (9mm, 44 mag & .357 SIG) (NIJ 0106.01)
BLUNT IMPACT PROTECTION
Meets ACH requirements: <150g in all locations for 3 m/s (10 ft/s) impact
